Sylcin 24V 100Ah Forklift Battery
SC-24100
1.Strong Output: Designed for versatile drive applications
2.Smart BMS: 3-stage charging for extended lifespan
3.High Energy Density: Compact size, large capacity
4.Remote Monitoring: Optional WiFi/Bluetooth
5.Safe Design: Overcurrent, overtemperature & short-circuit protection
6.Customizable: OEM/ODM flexible solutions
2.Smart BMS: 3-stage charging for extended lifespan
3.High Energy Density: Compact size, large capacity
4.Remote Monitoring: Optional WiFi/Bluetooth
5.Safe Design: Overcurrent, overtemperature & short-circuit protection
6.Customizable: OEM/ODM flexible solutions
Quantity:
SylCin 24V 100Ah Forklift Battery – High-Performance, Durable, and Safe Power Solution
The SylCin 24V 100Ah forklift battery delivers reliable and long-lasting energy for a wide range of industrial and logistics vehicles. Built with Grade A LiFePO₄ cells, it offers high energy density and consistent power output — ideal for electric forklifts, pallet trucks, and automated guided vehicles (AGVs).
Equipped with an advanced Battery Management System (BMS), the battery supports 3-stage charging, temperature monitoring, and fault protection, effectively extending service life and ensuring safe operation.
Whether it's a warehouse forklift operating under heavy load or an AGV running around the clock, this 24V lithium forklift battery helps reduce downtime, increase energy efficiency, and minimize overall maintenance costs.
SylCin 24V 100Ah Forklift Battery Details
24V Power Lithium-Ion Forklift Battery Technical Specifications
Items | Parameter | Parameter | Parameter |
Rated Capacity | 100Ah | 200Ah | 250Ah |
Minimum Capacity | ≥99Ah | ≥199Ah | ≥249Ah |
Energy | 2560Wh | 5120Wh | 6400Wh |
Nominal Voltage | 24V/25.6V | 24V/25.6V | 24V/25.6V |
Open Voltage | 20~29.2V | 20~29.2V | 20~29.2V |
Internal Impedance | ≤200mΩ | ≤200mΩ | ≤200mΩ |
Charge voltage | 29.2V | 29.2V | 29.2V |
Standard charge current | 50A | 100A | 125A |
Max charge current | 50A | 100A | 125A |
Standard discharge current | 100A | 200A | 250A |
Max discharge current | 100A （Continuous） | 200A （Continuous） | 250A （Continuous） |
Discharge cut-off voltage | 20V | 20V | 20V |
Operating Temperature(Charging) | 0~+45℃ | 0~+45℃ | 0~+45℃ |
Operating Temperature(Discharging) | -10~+60℃ | -10~+60℃ | -10~+60℃ |
Storage Temperature | -20℃～+65℃ | -20℃～+65℃ | -20℃～+65℃ |
Communication | RS485/CAN/RS232 | RS485/CAN/RS232 | RS485/CAN/RS232 |

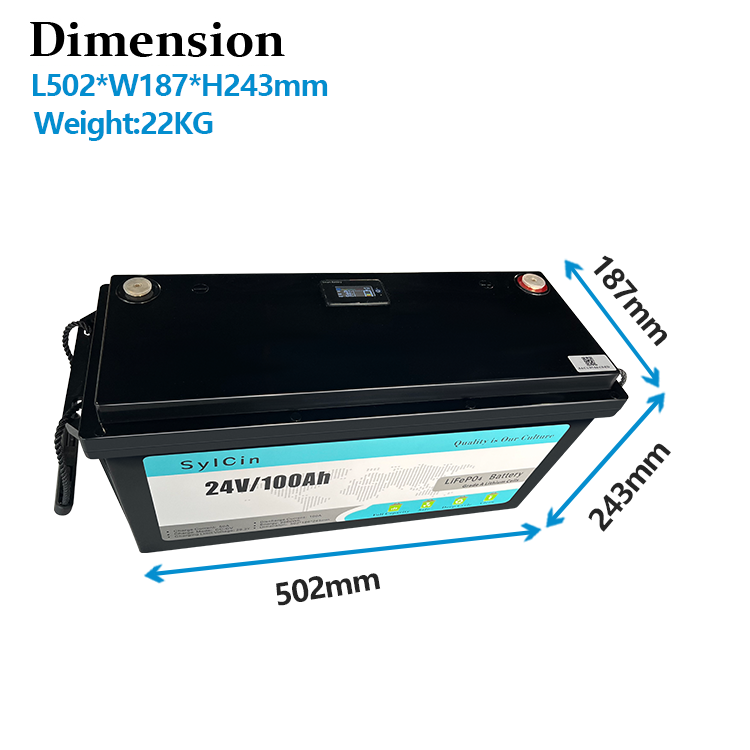

Size | 502*187*243mm | 550*322*240mm | 760*249*245mm |
Net Weight | About 22kg | About 45kg | About 55kg |
Model | SC-24100 | SC-24200 | SC-24250 |
