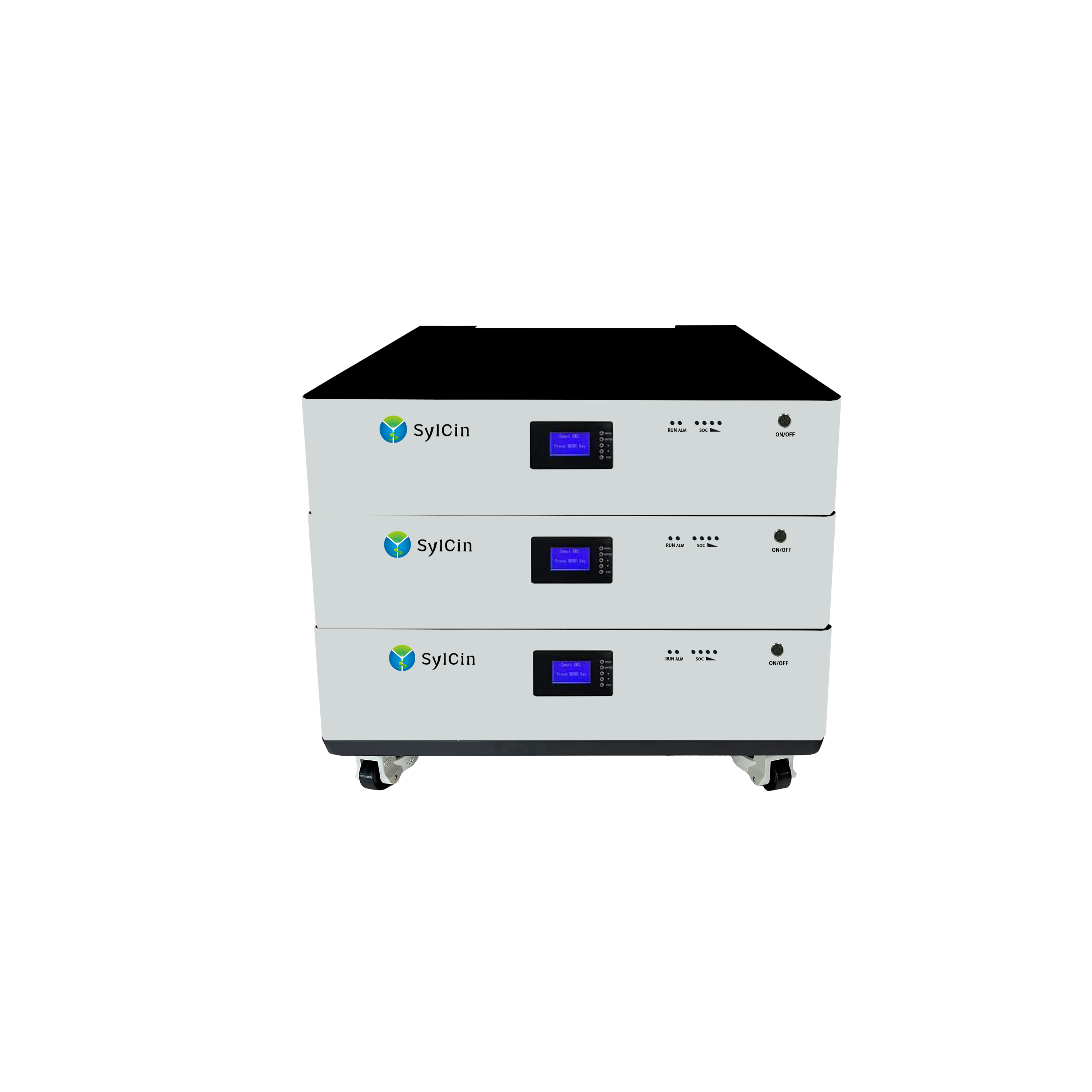

Sylcin 48V Stackable Lithium Battery
SC-DD48100
1.Modular Design: Easy capacity and power expansion
2.High Energy Density Cells: Compact yet powerful performance
3.Smart BMS: Three-level protection for reliable charging
4.Smart Monitoring: WiFi/Bluetooth connectivity options
5.Comprehensive Protection: Overcharge, over-discharge, over-temperature
6.Customizable Solutions: Full OEM/ODM support
2.High Energy Density Cells: Compact yet powerful performance
3.Smart BMS: Three-level protection for reliable charging
4.Smart Monitoring: WiFi/Bluetooth connectivity options
5.Comprehensive Protection: Overcharge, over-discharge, over-temperature
6.Customizable Solutions: Full OEM/ODM support
Quantity:
SylCin Home Energy Storage Stacked Lithium Battery
– Safe, Reliable, Modular Energy Storage Solution
The SylCin stacked lithium battery system features neatly arranged large prismatic LiFePO4 cells welded with precision aluminum busbars. Its stackable battery design allows easy expansion, providing scalable storage for residential, commercial, or industrial needs.
The built-in SOC/SOH management algorithm monitors voltage, temperature, and current in real time, ensuring system safety and stability. With multiple communication interfaces, this stackable lithium battery integrates seamlessly with most inverter and monitoring systems, delivering high-efficiency power for long-term energy independence.
The built-in SOC/SOH management algorithm monitors voltage, temperature, and current in real time, ensuring system safety and stability. With multiple communication interfaces, this stackable lithium battery integrates seamlessly with most inverter and monitoring systems, delivering high-efficiency power for long-term energy independence.
SylCin Stacked Lithium Batttery Details
SylCin Stackable Lithium Battery Specifications
Items | 48V/51.2V/2.56KWH | 48V/51.2V/5.12KWH | 48V/51.2V/7.68KWH | 48V/51.2V/10.24KWH |
Rated Capacity | 50Ah | 100Ah | 150Ah | 200Ah |
Minimum Capacity | ≥49.5Ah | ≥99.5Ah | ≥149.5Ah | ≥199.5Ah |
Energy | 2.56KWh | 5.12KWh | 7.68KWh | 10.24KWh |
Nominal Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V | 48V/51.2V |
Open Voltage | 48V~52V | 48V~52V | 48V~52V | 48V~52V |
Load Voltage | ≥48V | ≥48V | ≥48V | ≥48V |
Internal Impedance | ≤80mΩ | ≤80mΩ | ≤80mΩ | ≤80mΩ |
Charge voltage | 58.4V | 58.4V | 58.4V | 58.4V |
Standard charge current | 25A | 50A | 100A | 100A |
Max charge current | 50A | 100A | 150A | 200A |
Standard discharge current | 50A | 100A | 150A | 200A |
Max discharge current | 50A（continuous） | 100A（continuous） | 150A（continuous） | 200A（continuous） |
Discharge cut-off voltage | 43.2V | 43.2V | 43.2V | 43.2V |
Operating Charge Temperature | 0℃~+60℃ | 0℃~+60℃ | 0℃~+60℃ | 0℃~+60℃ |
Operating Discharge Temperature | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
Weight | About 52kg | |||
Communication | CAN/RS485/RS232/Dry contact interface | |||
Series-Parallel Connection | 15 battery modules connected in parallel | |||
Size | 524*410*180mm | |||
Model | SC-DD4850 | SC-DD48100 | SC-DD48150 | SC-DD48200 |
Get a Quote Today→
Sylcin 48V Stackable Home Energy Storage Battery Quality Assurance and Certification
SylCin Stacked lithium Battery undergoes rigorous quality testing and international certification, guaranteeing safety, performance, and reliability. Every stackable lithium battery is produced under strict quality control and supported by professional after-sales service.
- Safety Certification
Complies with CE, UN38.3, IEC62133, FCC, ROHS and other international safety standards, with multiple protections for secure operation. - Quality Assurance
High-quality LiFePO4 cells and aluminum casings with precise manufacturing ensure reliable performance for every unit. - After-Sales Support
Professional technical support and rapid response services ensure worry-free operation for all customers.
Why Sylcin Stackable Batteries Lead Traditional Batteries or Lead-Acid Batteries?
Feature | 🔋 SylCin Stackable Battery | ⚠️ Traditional Lead-Acid Battery | ||||||||||||
Battery Type | LiFePO4 | Lead-Acid | ||||||||||||
Modular Design | 1–15 units in parallel, flexible expansion | Limited or difficult expansion | ||||||||||||
Multi-Protection | Over-voltage, over-current, over-charge, over-discharge, over-temperature, reverse polarity, short-circuit | Limited protection features | ||||||||||||
Intelligent Management | SOC/SOH algorithm for real-time monitoring | Weak or no management | ||||||||||||
Communication Interfaces | RS485, CAN, Ethernet; compatible with multi-brand inverters | Few or no communication interfaces | ||||||||||||
Cycle life | 6500 | 800 | ||||||||||||
Warranty | 10 years | 1 year or less | ||||||||||||
Cooprate with Sylcin Today→
🔌 Wide Inverter Compatibility
To ensure smooth operation of your energy system, SylCin Stackable Lithium Batteries are compatible with leading inverter brands on the market. Whether for residential solar, commercial energy storage, or industrial power systems, we provide a stable and reliable interface to keep your system running efficiently.
Why Choose SylCin Stackable LiFePO4 Battery?
- Flexible Modular Design: Easily scale capacity according to energy needs.
- Multiple Safety Protections: Ensures long-term reliable operation.
- Smart Battery Management: Monitors performance and prolongs battery life.
- High Current Charging & Discharging: Suitable for residential, commercial, and industrial applications.
- Comprehensive After-Sales Service & Certification: Provides peace of mind and reliable usage.
🔧 Function Customization — Tailored for Your Needs
At SylCin, we understand that different applications require unique solutions. Our stacked lithium battery systems offer a range of optional customization features, allowing customers to configure the functions they need for maximum flexibility and convenience.❄️ Intelligent Heating (Optional)For cold-climate applications, the system can be equipped with a BMS-controlled heating function.📱 WIFI & Bluetooth Connectivity (Optional)Through wireless Bluetooth connection, users can access detailed battery information — including status, operating history, and alerts — directly on their mobile devices. Remote control functions allow switching modes or adjusting parameters, making operation and management far more user-friendly.☁️Cloud Platform Customization (Optional)Integrate your stackable battery with a private or third-party cloud platform for remote data storage, performance analytics, and multi-site monitoring.🩺 Battery Health Monitoring (Optional)Our SOH (State of Health) function provides comprehensive insight into battery performance over time. It not only shows whether remaining capacity is sufficient for temporary loads but also predicts when specific cells or packs may need maintenance or replacement, helping extend system lifespan and reduce downtime.📊 LED Display (Optional)Add an external LED panel to clearly present battery pack data in real time. The display can be customized to show key indicators such as voltage, current, SOC, and alarms, while also supporting DIY configuration of operational functions for easy monitoring.⚙️ More Options AvailableBeyond the above, SylCin also supports tailored function development to meet special application requirements, ensuring each solution matches your exact project needs.
How to Order the Sylcin Stackable Lithium Battery Pack?
🔎 More FAQs about SylCin Stacked Batteries
1. Can stacked batteries be stored safely?
Yes. SylCin stacked batteries are designed for safe vertical storage. They should be placed in a dry, ventilated environment away from direct sunlight, fire, or high heat. To prevent damage, ensure the stacks are stable and protected from vibration or impact.
Yes. SylCin stacked batteries are designed for safe vertical storage. They should be placed in a dry, ventilated environment away from direct sunlight, fire, or high heat. To prevent damage, ensure the stacks are stable and protected from vibration or impact.
2. How many units can be stacked together?
Our modular system supports 1–15 battery units in parallel. For practical use and load management, customers typically stack 4–6 units, which balances safety, efficiency, and convenience of installation. Larger configurations can be customized based on project needs.
Our modular system supports 1–15 battery units in parallel. For practical use and load management, customers typically stack 4–6 units, which balances safety, efficiency, and convenience of installation. Larger configurations can be customized based on project needs.
3. What are the key benefits of a stacked battery system?
Stacked batteries allow modular scalability, saving space while meeting diverse energy needs. They support flexible capacity expansion, multi-inverter compatibility, and high-current charge/discharge. Compared with traditional designs, stacked systems are easier to install, maintain, and upgrade, making them ideal for both residential and commercial users.
Stacked batteries allow modular scalability, saving space while meeting diverse energy needs. They support flexible capacity expansion, multi-inverter compatibility, and high-current charge/discharge. Compared with traditional designs, stacked systems are easier to install, maintain, and upgrade, making them ideal for both residential and commercial users.
4. Is it better to connect stacked batteries in series or parallel?
For most applications, parallel connection is recommended because it increases capacity without changing voltage, ensuring longer service life and stable performance. Series connection raises voltage but may generate higher heat, which accelerates wear. SylCin stacked batteries are optimized for safe parallel operation, with BMS protection and balancing technology ensuring reliability.
For most applications, parallel connection is recommended because it increases capacity without changing voltage, ensuring longer service life and stable performance. Series connection raises voltage but may generate higher heat, which accelerates wear. SylCin stacked batteries are optimized for safe parallel operation, with BMS protection and balancing technology ensuring reliability.
5. Can stacked batteries work with solar or wind energy systems?

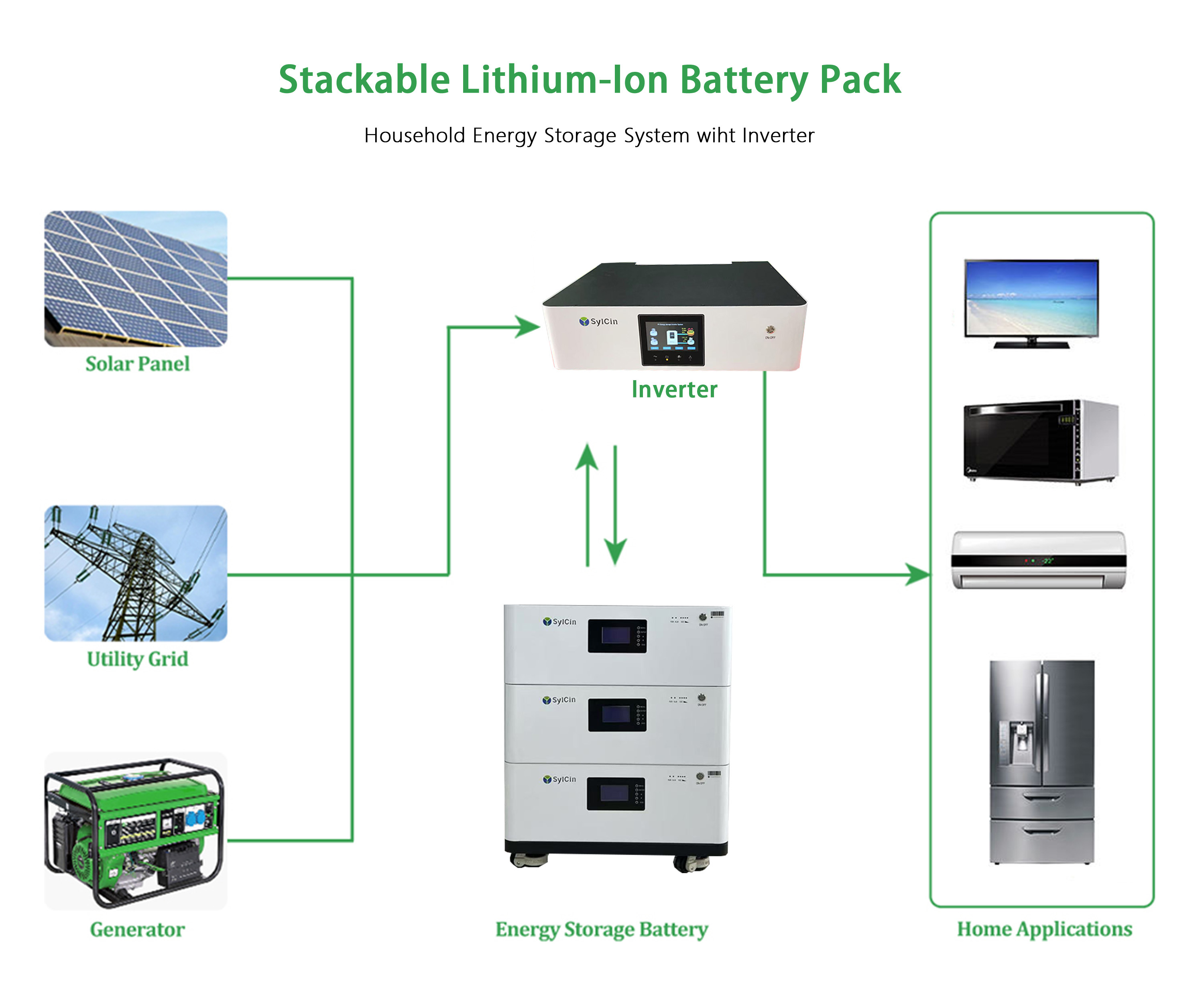

Absolutely. SylCin stacked batteries are designed to integrate seamlessly with solar PV, wind turbines, and hybrid inverters, making them ideal for off-grid, backup, and peak-shaving applications.
Absolutely. SylCin stacked batteries are designed to integrate seamlessly with solar PV, wind turbines, and hybrid inverters, making them ideal for off-grid, backup, and peak-shaving applications.
