Sylcin Wall-Mounted All-in-One Solar Battery System

SC-PW48100-5KW

1. All-in-one wall-mounted design, power expansion made easy
2. Inverter options: 5KW / 10KW / 15KW
3. Flexible capacity — customize small or large systems as needed
4. HD touchscreen — clear view of battery & inverter status
5. Compatible with multiple inverter brands for easy system integration
6. Unique BMS terminal three-stage charging technology
7. High energy density LiFePO₄ cells for long service life

Quantity:

Contact Now

add to cart

SylCin Wall-Mounted All in One Solar Power System Solution

As renewable energy adoption accelerates, the demand for stable and intelligent all in one solar battery systems continues to rise. Frequent grid fluctuations, rising electricity costs, and the pursuit of cleaner power are driving more homes and small businesses to choose all in one solar power systems.

The SylCin All-in-One Wall-Mounted Solar Battery System integrates an inverter, lithium battery modules, and BMS into one compact unit, simplifying traditional setups that require multiple separate devices and complex wiring. This innovation makes installation faster, safer, and more user-friendly.

With its sleek, space-saving wall-mounted design, the system suits apartments, villas, rural homes, and small offices alike. Compared to bulky rack systems, it offers a clean and modern look, fitting seamlessly into residential or commercial environments.

As a next-generation all in one solar system, it stores renewable energy for nighttime or grid outages, reduces electricity costs through peak shaving and load shifting, and ensures continuous backup during emergencies. It is both a guardian of clean energy and a smart partner for efficient living.

SylCin Wall-Mounted All in One Solar Power System Details

Functional components of all in one solar battery system.

SylCin Wall-Mounted All in One Solar Battery Parameters

Items	Parameters
Rated Capacity	100Ah
Minimum Capacity	≥99.5Ah
Energy	5.12KWh
Nominal Voltage	48V/51.2V
Open Voltage	48V~54V
Load Voltage	≥43.2V
Internal Impedance	≤80mΩ
Charge voltage	58.4V
Standard charge current	50A
Max charge current	50A
Standard discharge current	100A
Max discharge current	100A（continuous）
Discharge cut-off voltage	43.2V
Operating Charge Temperature	0℃~+55℃
Operating Discharge Temperature	-20℃~+55℃
Weight	About 60kg
Communication	CAN/RS485/RS232 /Dry contact interface
Communication	CAN/RS485/RS232 /Dry contact interface
Series-Parallel Connection	15 battery modules connected in parallel
Series-Parallel Connection	15 battery modules connected in parallel

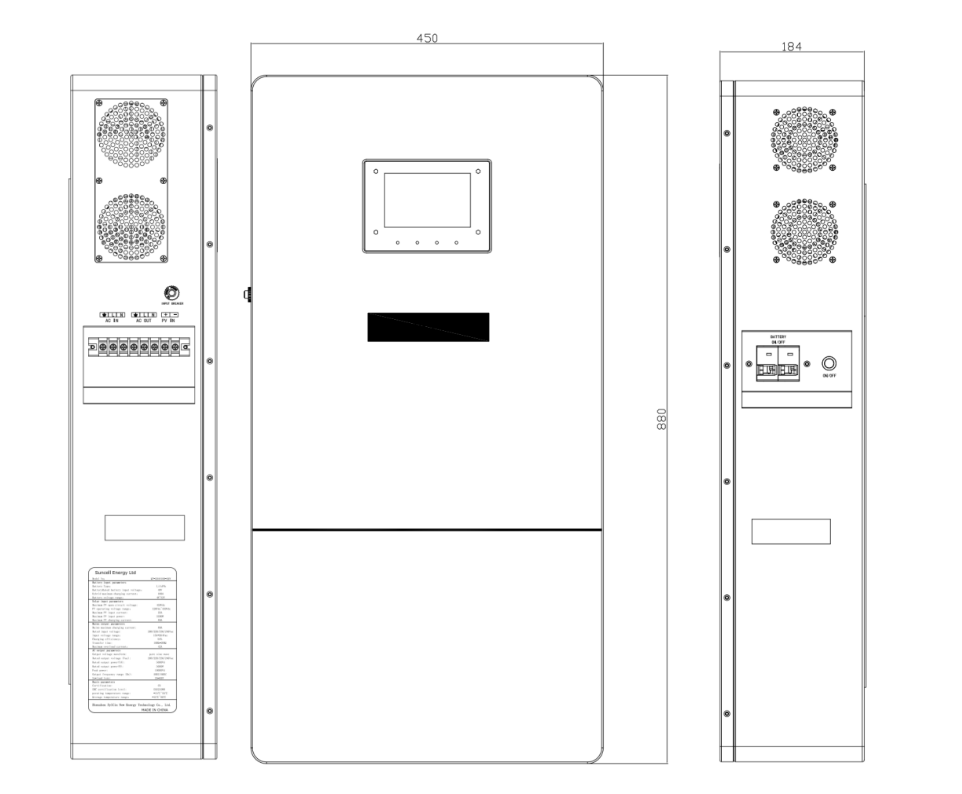

Size	880450185mm
Model	SC-PW48100-5KW

Cooprate With SylCin Today→

SylCin Wall-Mounted All-in-One Solar Battery System Applications

With the diversification of energy usage, all in one solar battery systems are no longer just backup power — they are becoming core energy management tools for homes, businesses, and off-grid areas. The SylCin All-in-One Solar Power System adapts flexibly to various applications, helping users achieve energy independence and cost optimization.

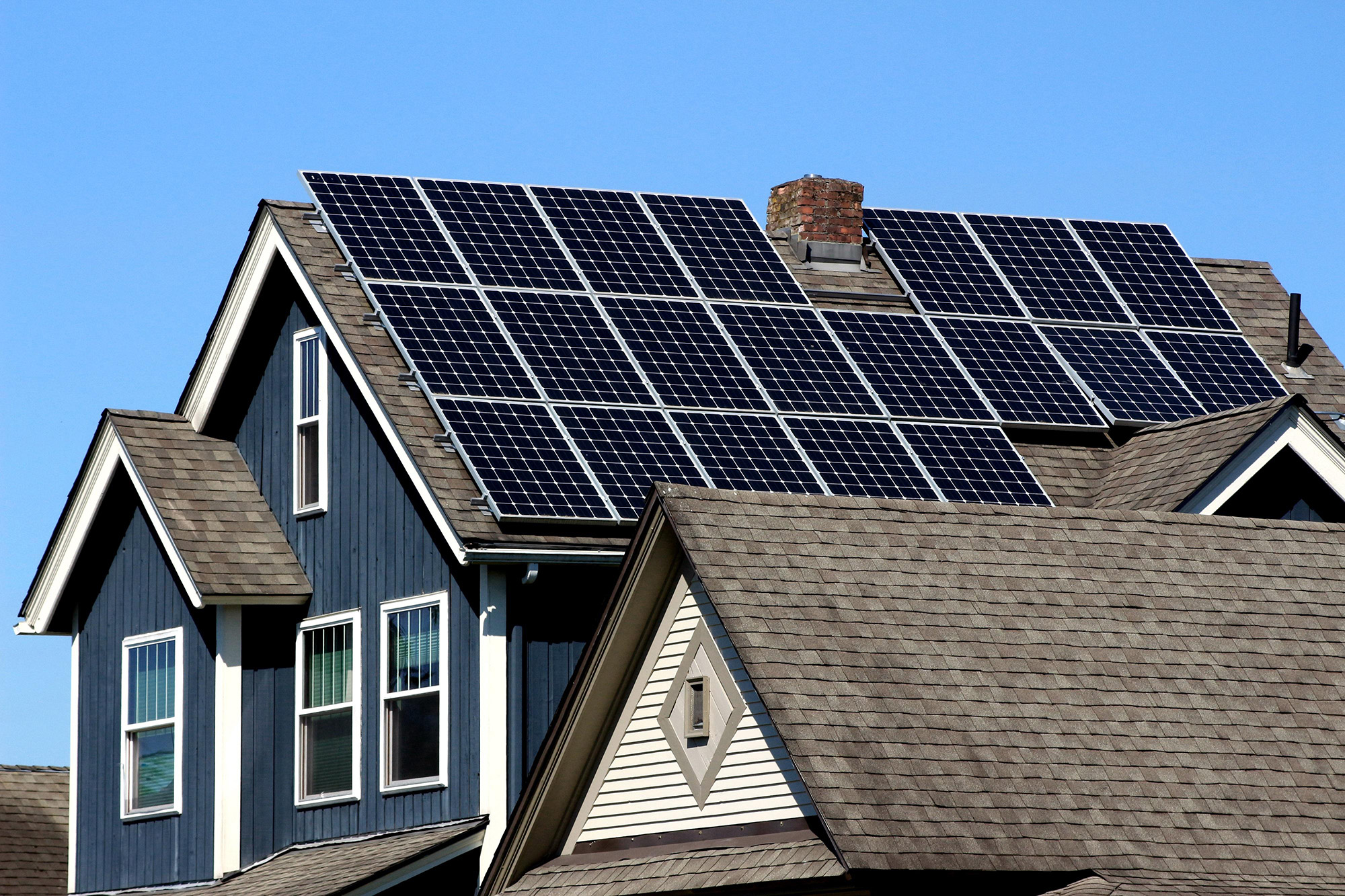

Home Solar Storage

Scenario:In homes, solar panels generate energy during the day while usage peaks at night.
Benefits:The SylCin All-in-One Solar Battery System stores excess solar energy and releases it later, reducing grid reliance and providing reliable backup during outages.

Villas & Vacation Homes

Scenario:Villas often face unstable grids or higher power demand.
Benefits:The wall-mounted all in one solar system is aesthetic and efficient, powering air conditioning and security systems with remote monitoring for peace of mind.

Application of all in one solar power system in villas and vacation homes.

Small Businesses

Scenario:Shops and offices face high peak-hour electricity rates.
Benefits:The SylCin system performs load shifting to reduce costs and ensures uninterrupted operation for lighting, POS systems, and refrigeration during outages.

Remote & Off-Grid Areas

Scenario:Villages, islands, or mountainous regions with limited grid access.
Benefits:Theall in one solar battery system integrates seamlessly with solar or wind power, delivering clean, independent energy for off-grid living or remote operations.

Application of all in one solar system in remote and off-grid areas.

Wherever power is needed — homes, villas, businesses, or remote areas — the SylCin All-in-One Solar Power System ensures stable, intelligent, and cost-effective energy storage.

Get a Quote Today→

Why Choose the SylCin Wall-Mounted All in One Solar Battery System?

Among many energy storage products, users choose the SylCin All-in-One Solar Power System for its integration, safety, and intelligence — solving real-world energy challenges.

Integrated Design, Easy Installation
Combines inverter, battery, and BMS into a single all in one solar system, simplifying setup and saving labor.
High Performance & Long Lifespan
A-grade LiFePO₄ cells with 6500+ cycles ensure over 10 years of reliable operation.
Safe & Reliable
Smart BMS offers full protection — overcharge, over-discharge, short circuit, and temperature safety.
Smart Monitoring & Remote Control
APP and web management allow remote monitoring of your all in one solar power systemanytime.
Flexible Expansion
Supports parallel expansion for homes, villas, and small businesses.
Energy Saving & Cost Reduction
Performs peak shaving and enhances renewable energy use — eco-friendly and economical.

Customers choose the SylCin All-in-One Wall-Mounted Battery because it combines convenience, safety, efficiency, and intelligence, solving energy problems while providing long-term reliable power.

🔧 Function Customization — Tailored for Your All-in-One Solar Battery System

SylCin understands that every project is unique. Our All-in-One Solar Battery Systems can be customized to fit your exact requirements:

🎨 Appearance & Color Options– Custom cabinet, color, and branding design.

⚡ Capacity & Voltage Configuration – Flexible to suit home or commercial needs.

❄️ Intelligent Heating (Optional)– Self-heating for cold climates.

📱 WIFI & Bluetooth Connectivity – Real-time data access on mobile devices.

☁️Cloud Platform Customization (Optional) – Integrate your all in one solar power system with a private or third-party cloud platform for remote data storage, performance analytics, and multi-site monitoring.

🩺 BMS Software Customization (Optional) – Support parameter configuration and software tuning according to user-defined operating logic and safety requirements.

📊LED Display (Optional) – Real-time voltage, current, SOC, and alarm display for quick status checks.

SylCin also provides deeper customization — communication protocols, hybrid integration, and OEM/ODM support — to build the perfect all in one solar power system for any project.

Discuss your custom battery solution with SylCin→

How to Order the Sylcin Wall Mounted All in One Solar Battery System?

Order to delivery process for all in one solar power system.

Let Sylcin Help You→

🔎 FAQs — About the SylCin Wall-Mounted All-in-One Solar Battery System

1. Is the system safe for indoor installation?
Yes. The compact all in one solar battery system integrates inverter and battery in one enclosed unit, offering full protection and stable indoor operation.

2. Can multiple units be connected in parallel?
Yes. Modular design allows expansion up to 80kWh or more, ideal for scalable all in one solar systems.

3. What is the lifespan?
With LiFePO₄ cells, the system lasts over 6,500 cycles (10+ years).

4. How does it compare with separate inverter + battery setups?

Easier installation & fewer cables
Higher reliability and smarter unified control
Compact, space-saving design
Lower maintenance cost

5. Is expansion possible later?
Yes — simply connect more units for larger all in one solar power systems without replacing the original setup.

6. Compatible with solar and wind energy?
Absolutely — works seamlessly with solar PV panels, wind turbines, and hybrid setups.

7. Is professional installation required?
Recommended for safety and efficiency, though setup is simpler than traditional systems.
