SylCin Floor-Standing 5KWH 10KWH 15KWH Solar Energy Storage
SC-LD48300
1.Large-capacity options (5kWh / 10kWh / 15kWh) suitable for daily household and emergency power needs.
2.Intelligent BMS for efficient battery management and extended lifespan.
3.Multiple safety protections for secure indoor use.
4.Compact floor-standing design with optional caster wheels for easy installation and maintenance.
5.Customizable solutions tailored to different homes and application scenarios.
2.Intelligent BMS for efficient battery management and extended lifespan.
3.Multiple safety protections for secure indoor use.
4.Compact floor-standing design with optional caster wheels for easy installation and maintenance.
5.Customizable solutions tailored to different homes and application scenarios.
Quantity:
SylCin 5KWH 10KWH 15KWH Solar Battery for Home & Business
As global renewable adoption grows, households and small businesses increasingly demand reliable energy storage. SylCin's configurable 5kWh, 10kWh, and 15kWh solar batteries answer that need by offering flexible capacity choices and robust performance.
Balanced Capacity & Flexibility – Choose the 5kWh battery for compact backup or small cabins, the 10kWh battery for typical homes, or the 15kWh battery for larger households and small commercial loads. All models support essential appliances—lighting, fridge, water heater, HVAC, and communications.
1.Safe & Reliable Cell Technology – Constructed with premium LiFePO₄ cells to ensure thermal stability, long cycle life, and superior safety compared with lead-acid or lower-grade lithium cells.
2.Smart Energy Management–BMS provides real-time monitoring, optimized charge/discharge strategies, and remote connectivity for convenient management.
3.Scalable System Design – Each unit (5kWh / 10kWh / 15kWh) can be connected in parallel with up to 15 identical units:
- 5kWh × 15 = 75kWh maximum (for 5kWh units)
- 10kWh × 15 = 150kWh maximum (for 10kWh units)
- 15kWh × 15 = 225kWh maximum (for 15kWh units)
This modularity makes SylCin batteries suitable for single-family homes, villas, guesthouses, small factories, and scalable microgrids.
User-Friendly Design – Floor-standing cabinet with optional caster wheels and handle for stable placement and easy repositioning. Installation and maintenance are straightforward.
Choosing a SylCin solar battery means getting a safe, scalable, and intelligent energy partner for continuous, reliable power.

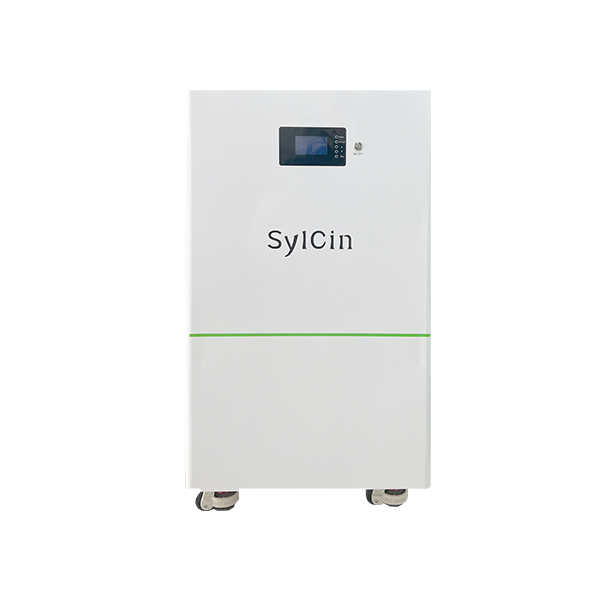

SylCin 15kWh Lithium Battery Product Details
Compatible Inverter Brands
SylCin 48V Floor-Standing Battery Specifications (5kWh / 10kWh / 15kWh Options)
| Items | 48V/51.2V/5KWH | 48V/51.2V/10KWH | 48V/51.2V/15KWH |
| Rated Capacity | 100Ah | 200Ah | 300Ah |
| Minimum Capacity | ≥99.5Ah | ≥198.5Ah | ≥299.5Ah |
| Energy | 5.12KWh | 10.24KWh | 15.36KWh |
| Nominal Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V |
| Open Voltage | 48V~52V | 48V~52V | 48V~52V |
| Load Voltage | ≥48V | ≥48V | ≥48V |
| Internal Impedance | ≤80mΩ | ≤80mΩ | ≤80mΩ |
| Charge voltage | 58.4V | 58.4V | 58.4V |
| Standard charge current | 50A | 100A | 100A |
| Max charge current | 100A | 200A | 200A |
| Standard discharge current | 100A | 200A | 200A |
| Max discharge current | 100A（continuous） | 200A（continuous） | 200A（continuous） |
| Discharge cut-off voltage | 43.2V | 43.2V | 43.2V |
| Operating Charge Temperature | 0℃~+60℃ | 0℃~+60℃ | 0℃~+60℃ |
| Operating Discharge Temperature | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Weight | About 47.5kg | About 99.5kg | About 133kg |

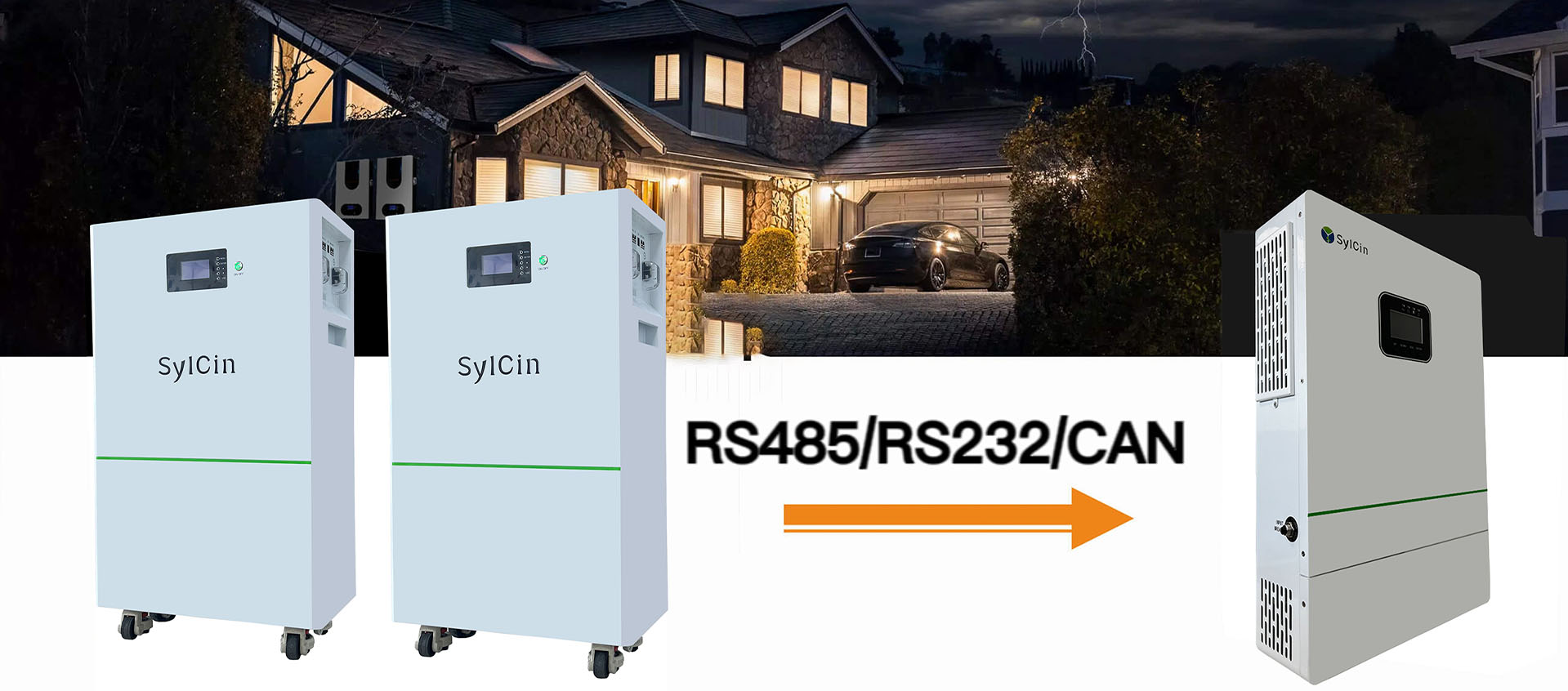

| Communication | CAN/RS485/RS232 /Dry contact interface | CAN/RS485/RS232 /Dry contact interface | CAN/RS485/RS232 /Dry contact interface |
| Series-Parallel Connection | 15 battery modules connected in parallel | 15 battery modules connected in parallel | 15 battery modules connected in parallel |
| Size | L=650±2、W=428±3、H=210±2mm | L=880±2、W=530±3、H=250±2mm | L=945±2、W=530±3、H=299±2mm |
| Model | SC-LD48100 | SC-LD48200 | SC-LD48300 |
Applications of SylCin 5kWh, 10kWh & 15kWh Floor-Standing Energy Storage Systems
With the growing demand for home energy storage and clean energy, the SylCin floor-standing lithium iron phosphate battery has emerged. It not only boasts high energy density and a long cycle life but also combines safety and reliability with intelligent management capabilities. This solution meets the requirements for energy independence and stability in modern homes, villas, and small commercial users.
Home Energy Storage
With volatile tariffs and increasing electrification, families benefit from 10kWh solar battery and 15 kWh battery options to shift consumption, lower bills, and secure power during outages. The 5kWh model is ideal for smaller households, cabins, or targeted backup loads.
Solar PV Systems
SylCin batteries store daytime solar generation for evening use. The BMS optimizes charging from PV arrays and prevents wasted energy, enabling true self-consumption and lower long-term electricity costs.
Backup Power Supply
During extreme weather or grid maintenance, SylCin units provide emergency power for critical loads: lighting, refrigeration, communications, and medical or IT equipment—ensuring continuity and safety.
Small Businesses
Retail shops, coffee shops, and offices can maintain operations during grid interruptions. Modular expansion (up to 15 identical units) supports scaling from small outlets to larger multi-site needs.
Safety, Certifications & Reliability of SylCin 5kWh 10kWh 15kWh Solar Batteries
Safety is core to SylCin's design philosophy. Our floor-standing batteries combine high-quality LiFePO₄ cells, multi-layer protections, and international certifications for dependable indoor use.
High-Safety Cells: A-grade LiFePO₄ cells reduce thermal runaway risk and deliver consistent performance.
Multi-Layer Protection System: Advanced BMS supports: overcharge, over-discharge, overcurrent, short-circuit, overtemperature, and reverse-polarity protection
International Certifications: CE, UN38.3, MSDS, FCC, RoHS (as applicable) for global compliance
Physical Safety Design: Flame-retardant enclosure, stable floor-standing frame with optional anchoring and caster wheels
Remote Monitoring & Smart Alerts: Optional Wi-Fi / RS485 / RS232 / Bluetooth connectivity for real-time monitoring and fault notifications
The SylCin 5kWh 10kWh 15kWh solar battery integrates high-safety cells, intelligent BMS, multi-layer protection, international certifications, and robust physical design, delivering a reliable and secure energy storage solution for homes, offices, and small businesses, ensuring uninterrupted power and maximum safety under all conditions.
Why Customers Choose SylCin 5kWh–15kWh Floor-Standing LiFePO₄ Battery Systems?
Customers trust SylCin for a mix of safety, flexibility, and smart features:
- Configurable capacities (5kWh / 10kWh / 15kWh) to match diverse energy needs.
- Parallel scalability – Connect up to 15 identical units(max 225kWh when using 15kWh units).
- Mobility & Easy Deployment – Caster wheels, handles, and simple wiring reduce installation time.
- Wide Inverter Compatibility – Compatible with mainstream inverters (Deye, Voltronic, SMA, Victron, etc.).
- Smart Monitoring & Display – LED screen + optional app for SOC, voltage, current, and temperature.
- Long Life & Reliability – Rated for over 6500 cycles at 100% DoD for durable performance.
In summary, customers choose SylCin 5kWh 10kWh 15kWh solar battery because it provides reliable and safe power, combined with convenient operation, intelligent management, and flexible scalability, making it a versatile energy storage solution for both residential and small business applications.
How to Order SylCin 5kWh / 10kWh / 15kWh Floor-Standing Energy Storage Battery?
FAQ – About SylCin 5kWh / 10kWh / 15kWh Solar Battery Systems
1. What capacity options are available?
You may choose from 5kWh, 10kWh, 15kWh, or custom single-unit capacities to meet diverse energy storage requirements.
2. How large can the system be expanded?
Each model supports up to 15 units of the same capacity in parallel.
This allows a maximum system capacity of 225kWh (15 × 15kWh) for the 15kWh model.
Similarly, the 5kWh version reaches up to 75kWh, and the 10kWh version up to 150kWh.
Each model supports up to 15 units of the same capacity in parallel.
This allows a maximum system capacity of 225kWh (15 × 15kWh) for the 15kWh model.
Similarly, the 5kWh version reaches up to 75kWh, and the 10kWh version up to 150kWh.
3. Is it safe for indoor installation?
Yes. The system uses safe LiFePO₄ battery cells, an advanced BMS protection system, and a flame-retardant enclosure, ensuring reliable operation indoors.
Yes. The system uses safe LiFePO₄ battery cells, an advanced BMS protection system, and a flame-retardant enclosure, ensuring reliable operation indoors.
4. What is the expected battery lifespan?
Each battery delivers over 6,500 cycles at 100% DoD, typically lasting 10 years or more under normal usage conditions.
Each battery delivers over 6,500 cycles at 100% DoD, typically lasting 10 years or more under normal usage conditions.
5. Does it support remote monitoring?
Yes. The system supports optional Wi-Fi / Bluetooth / RS485connections.
Through the companion mobile app, users can monitor SOC, voltage, current, and temperature in real time and receive alerts.
Yes. The system supports optional Wi-Fi / Bluetooth / RS485connections.
Through the companion mobile app, users can monitor SOC, voltage, current, and temperature in real time and receive alerts.
6. Is the battery easy to move?
Yes. It comes with optional industrial casters and handles, making local relocation and installation adjustments convenient.
Yes. It comes with optional industrial casters and handles, making local relocation and installation adjustments convenient.
7. What is the ROI period?
The payback period depends on local electricity rates and solar system size.
In most cases, the investment is recovered within 2–3 years.
The payback period depends on local electricity rates and solar system size.
In most cases, the investment is recovered within 2–3 years.
